Đặc tính kỹ thuật

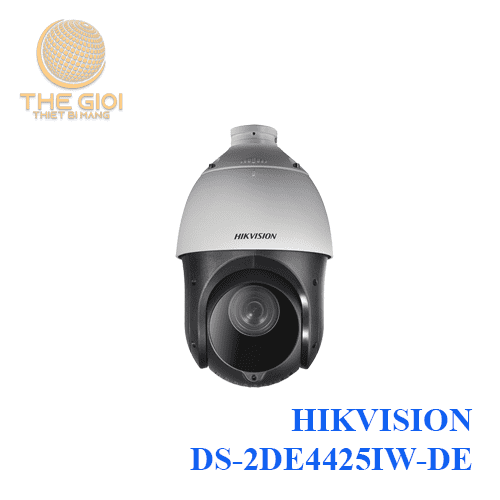

| Model | DS-2DE4425IW-DE |
| Camera | |
| Image sensor | 1/2.5 inch progressive scan CMOS |
| Effective Pixels | 2560(H) × 1440(V) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Digital zoom | 16x |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | On/Off |
| HLC | Support |
| WDR | 120dB |
| Defog | Support |
| Shutter Time | 1/1 to 1/30,000s |
| Day & Night | ICR |
| IR Range | 100m |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 ~ 120 mm, 25x optical |
| Aperture Range | F1.6 ~F3.5 |
| Pan/Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
| Tilt Range | -15°-90° (Auto Flip ) |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 300 |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Input/Output | |
| Alarm Input/Output | 1/1 |
| Audio Input/Output | 1/1 |
| Network | |
| Ethernet | 10Base -T, 100Base-TX, RJ45 Connector |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| ROI encoding | Support 4 areas with adjustable levels |
| No. of Simultaneous Users | 20 users |
| Three-Stream | Support |
| Mini SD Card | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| General | |
| Power Supply | 12VDC, PoE+ |
| Power Consumption | Max. 18 W (IR light 7W Max.) |
| Protection Level | IP66 standard (outdoor dome), TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | Φ 164.5 × 290 mm |
| Weight | 2.45kg |
