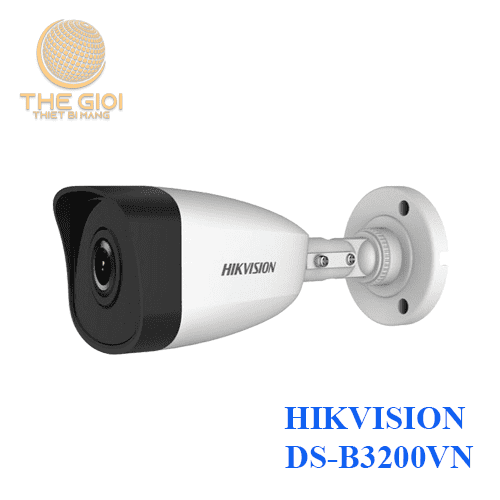

HIKVISION DS-B3200VN
HIKVISION DS-B3200VN

HIKVISION DS-B3200VN

DS-B3200VN CAMERA IP HÌNH TRỤ HỒNG NGOẠI 2 MP

Mã: DS-B3200VN

– Cảm biến: 1/2.8″ Progressive Scan CMOS,
– Độ nhạy sáng: 0.01Lux @ (F1.2, AGC ON) , 0.028 Lux @(F2.0, AGC ON) 0 Lux với IR
– Cắt lọc hồng ngoại ICR ;Độ phân giải 1280×720:25fps(P)/30fps(N), Ống kính 2,8mm/F2.2 (tùy chọn ống kính khác 4/6mm), Hỗ trợ chuẩn nén H.264&MJPEG,
– Hỗ trợ các tính năng chống ngược sáng kỹ thuật số DWDR, Chống nhiễu số 3D DNR, BLC , ROI, Tầm xa hồng ngoại lên tới 35m.
– Hỗ trợ nguồn DC12V and PoE
-Chuẩn bảo vệ IP67

Danh mục: , Thẻ: ,

MÔ TẢ SẢN PHẨM

Camera
Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);

B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens
Focal Length 2.8, 4, 6 mm
Aperture F2.0
Focus No
FOV 2.8 mm @F2.0, horizontal FOV 114°, vertical FOV 62°, diagonal FOV: 135°

4 mm @F2.0, horizontal FOV 87°, vertical FOV 48°, diagonal FOV: 102°

6 mm @F2.0, horizontal FOV 58°, vertical FOV 32°, diagonal FOV: 75°
IR
IR Range 2.8/4 mm: up to 30 m

6 mm: up to 35 m
Compression Standard
Video Compression Main stream: H.264

Sub-stream: H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
H.264+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 × 1080
Main Stream

Max. Frame Rate

 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream

Max. Frame Rate

 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Scheduled
Network
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6 W
Dimensions 71.36 mm × 66.75 mm × 192.76 mm
